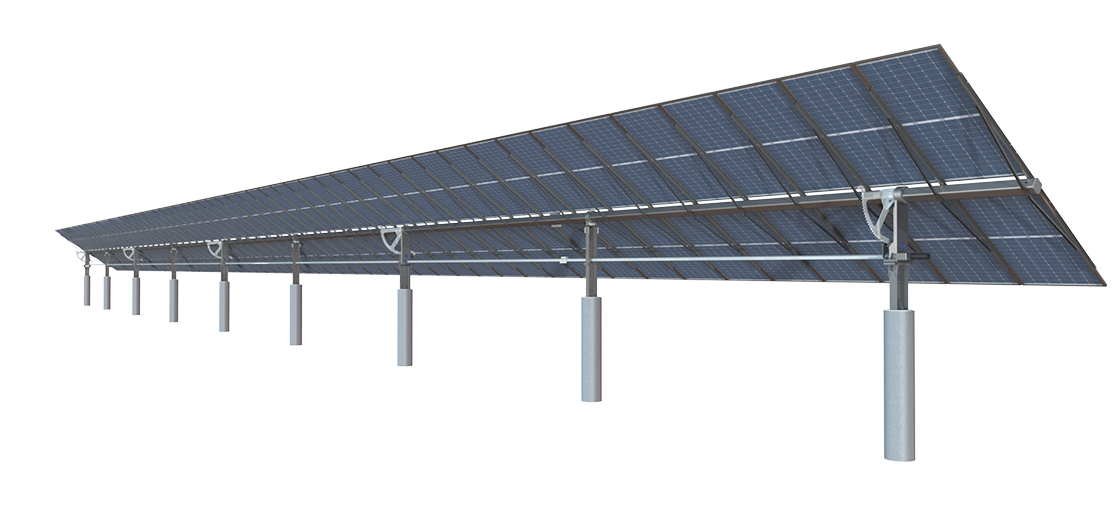

V-Multi Tracking System

V-Multi Tracking System Adopts one single row multi-point drive design and high-power components arranged in 2P, it has higher stability in areas with high wind pressure; Flexible arrangement on irregular ground with good slope adaptability; A small number of pile foundations can reduce the overall investment cost of the project.

Product parameters

Product features

Driving mode Chain Wheel+Reduction Gears(Multi-row mechanic linkage)
Tracking range ±60°
Foundation type PHC/Ramming pile/Cast-in-place pile
Allowable wind load 47m/s
Wind protection mode 18m/s
Module quantity ≤150PC
Module layout arrangement 2PC Portrait
The lowest point above the ground level 0.5m(Or according to actual project requirements)
Ground coverage ratio （GCR） ≥30%
Tracking mode Astronomical Algorithms/Active tracking/Backtracking/AI
Tracking accuracy ≤1°
Control mode MCU closed-loop feedback control
Control accuracy ≤0.3°
Power supply mode String connected with battery backup/PV panel with battery backup/Customer provided AC circuit
Power supply voltage 1500V DC/220V AC
Backup battery Lithium battery,≥6Ah
Level of protection ≥IP65
Communication mode Zigbee wireless/Modbus
Monitoring device SCADA(optional)
System consumption ~40kWh/Set/Year
Protected mode condition Gale/Snowfall/Hail
Standard and Certification 《Specifications for structural steel buildings》 AISC 360 《Minimum design loads for buildings and other structures》 ASCE 7 《CPP wind tunnel tests and wind load analysis》 UL2703/UL3703/AISC360-16/ASCE 7-22/sbp/BV Patent No.：CN215222101U
